The Ápice High X-ray is the combination of advanced technology with practicality and efficiency. Its exclusive optical positioning system provides shorter exposure times, ensuring high-quality images with precision, clarity and efficiency.

Equipped with high frequency technology and an X-ray generator with exclusive ANTIRAD technology, it offers high quality images with a high level of insulation. Its versatility allows it to be used with different types of sensors, whether digital, phosphor or analog.

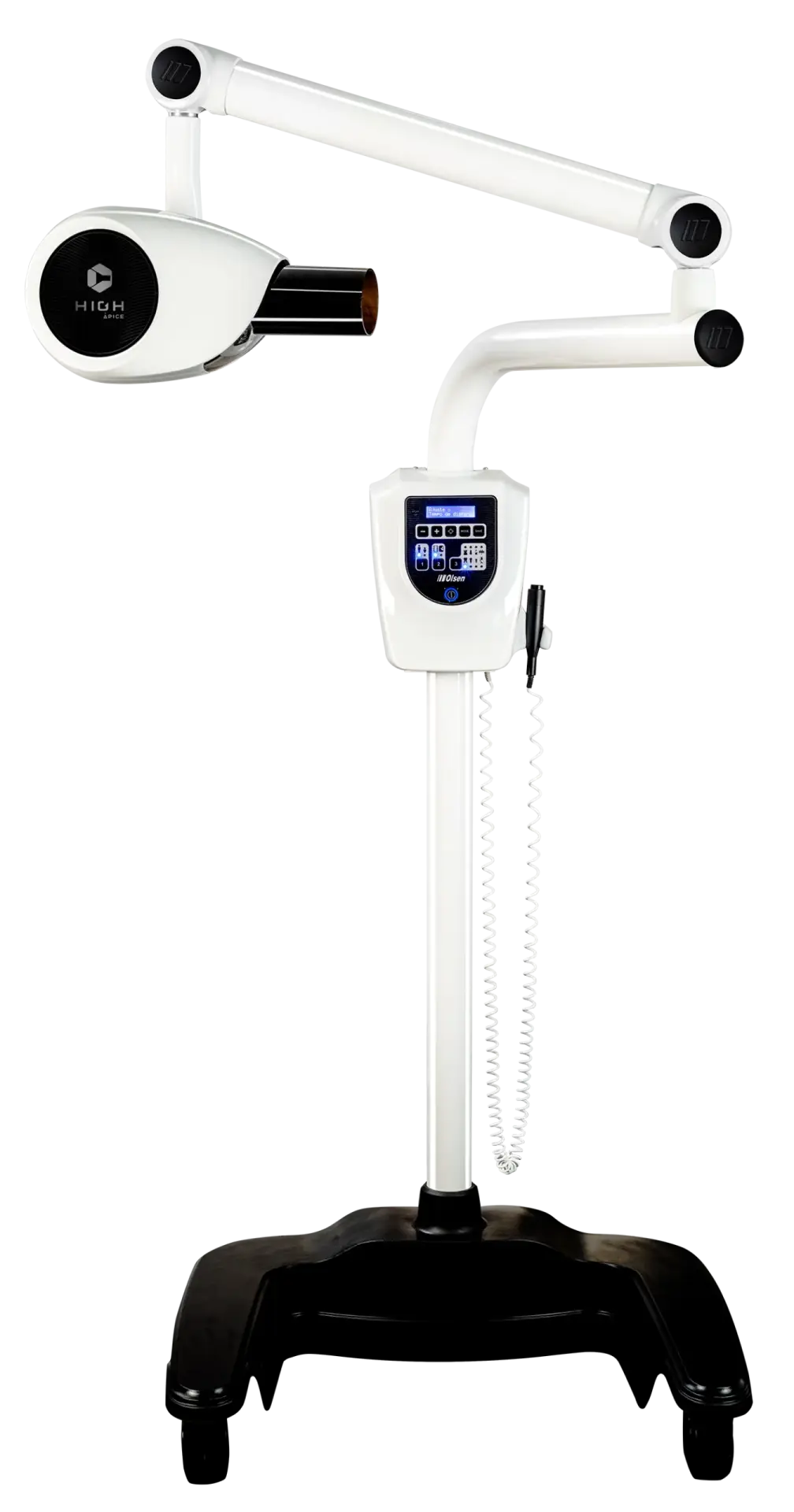

Ápice X-Ray Unit

Customize your office and impress your patients. Make an order

  • Type:  High Frequency
  • Voltage:  127-220 VAC ± 10%
  • Focal point:  0.4mm (IEC 60336)
  • Positioning system:  4 optical sensors
  • Tube Voltage:  60 kV ± 10%
  • Tube Current:  2.5 mA ± 20%
  • Exposure Time Range:  0.6 to 0.8 (incremental)
  • Source – Skin Distance:  Minimum 200 mm
  • X-ray Beam:  Round Ø 60 mm
  • Weight:  75 kg
  • Exposure cycle :  1:30
  • Maximum Heat Dissipation at Anode:  110 W
  • Arm Length:  1600 mm
  • Casters (mobile):  4 Casters (2 fixed and 2 with locks)
  • Anode material:  Tungsten
  • Anode tilt angle:  12º
  • Total Filtration in the Device:  3.2 mm Al

Images are for illustrative purposes only, and colors may vary due to digital display. Some images may include optional items that are not part of the product’s standard configuration. Hand instruments are not included with the equipment.

Olsen reserves the right to change product design and specifications without prior notice. Payment terms are subject to credit approval by the financial institution.

For more information, please contact a sales representative.
