Ápice® X-Ray – Olsen Export

The pinnacle of performance and image quality

The Ápice High X-ray is the combination of advanced technology with practicality and efficiency. Its exclusive optical positioning system provides shorter exposure times, ensuring high-quality images with precision, clarity and efficiency.

Equipped with high frequency technology and an X-ray generator with exclusive ANTIRAD technology, it offers high quality images with a high level of insulation. Its versatility allows it to be used with different types of sensors, whether digital, phosphor or analog.

Specs

Type: High Frequency
Voltage: 127-220 VAC ± 10%
Focal point: 0.4mm (IEC 60336)
Positioning system: 4 optical sensors
Tube Voltage: 60 kV ± 10%
Tube Current: 2.5 mA ± 20%
Exposure Time Range: 0.6 to 0.8 (incremental)
Source – Skin Distance: Minimum 200 mm
X-ray Beam: Round Ø 60 mm
Weight: 75 kg
Exposure cycle : 1:30
Maximum Heat Dissipation at Anode: 110 W
Arm Length: 1600 mm
Casters (mobile): 4 Casters (2 fixed and 2 with locks)
Anode material: Tungsten
Anode tilt angle: 12º
Total Filtration in the Device: 3.2 mm Al

In addition, its ergonomics are highlighted by the ergonomic aluminum trigger, allowing activation from up to 3 meters away. With voltage stabilization and protection against power surges, the Ápice High X-Ray ensures durability and ideal performance for the most demanding radiological demands.

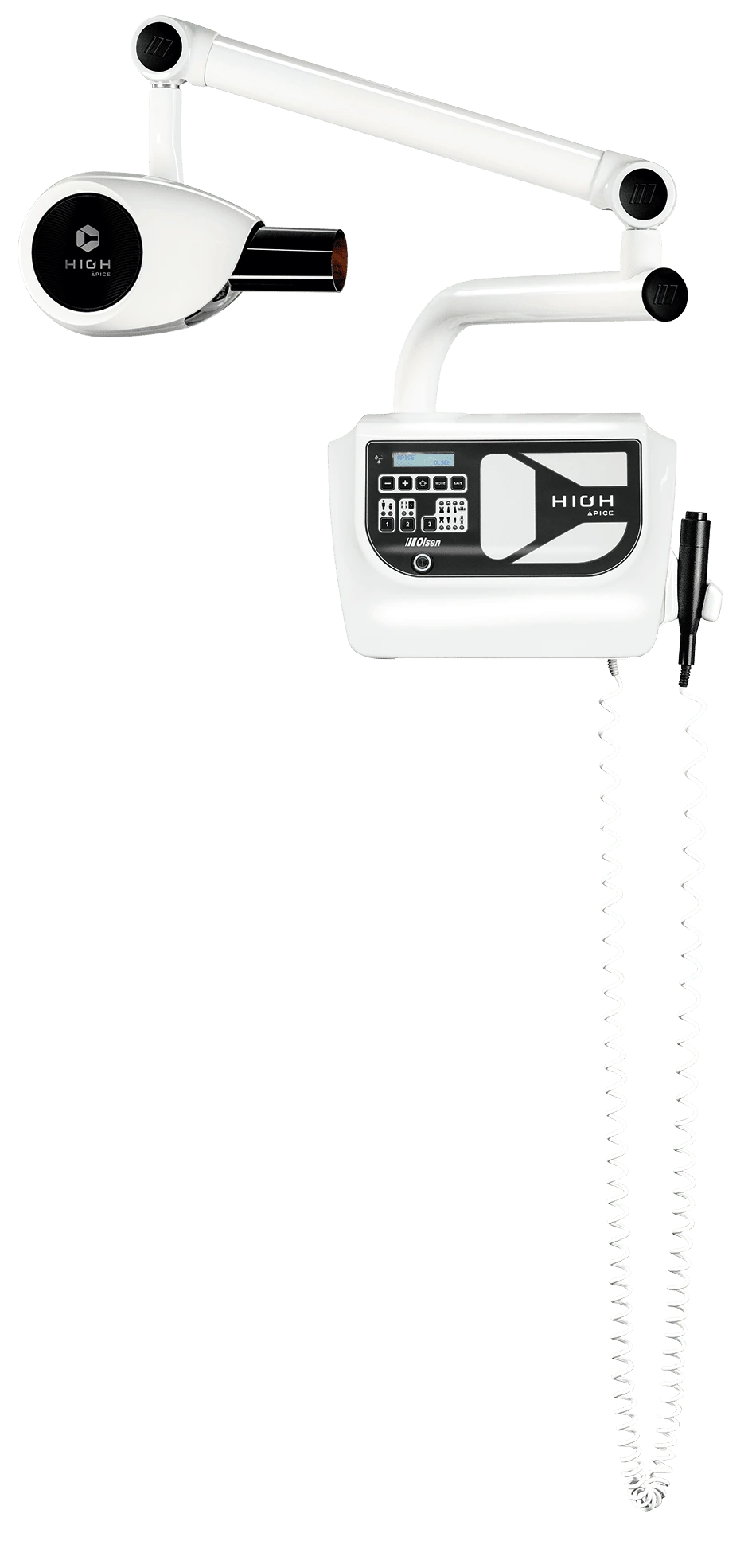

Wall Version

EXCLUSIVE
DRY CHAMBER Oil-free high-power chamber

EXCLUSIVE
Optical positioning system

High Frequency Technology Shorter exposure time

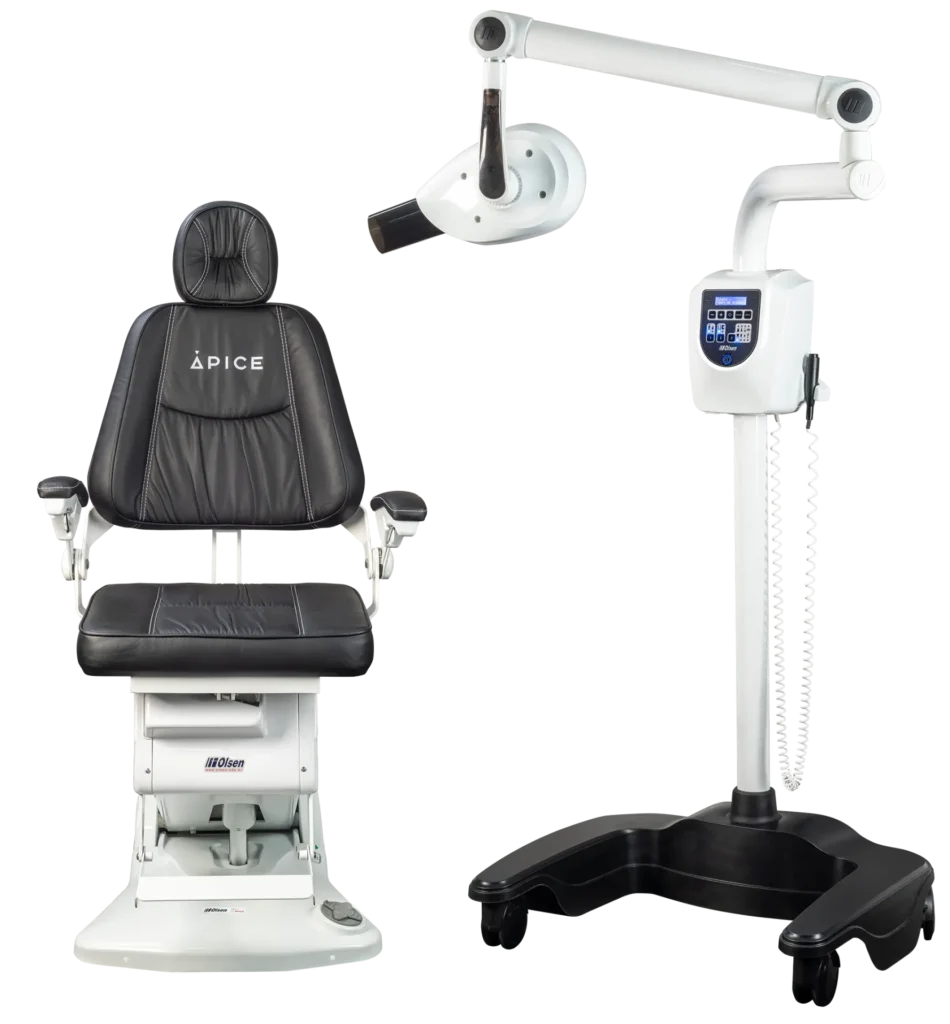

Radiological chair

Ergonomic comfort for you and your patient

The Olsen radiology chair is ergonomically designed to facilitate care in the radiology area. Elegant design, unparalleled comfort and advanced technology for accurate diagnoses.
